Model X Locker
Model X Locker

Model X

Model X wood athletic locker for locker rooms

Other views & options

Model X locker front view
Front view
Model X locker side view
Side view
Model X locker black
Black finish
Model X locker dimensions
Dimensions
Model X vented front panel
Vented front option

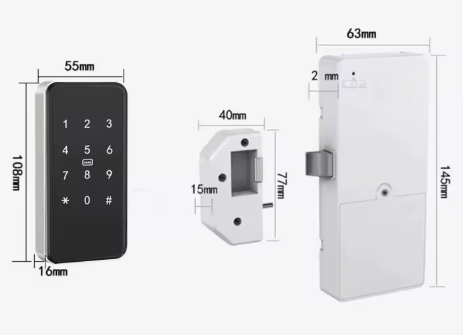

Lock box option with digital key lock
Lock box option

Model X Locker

Model # LEG-24-MP

Lead time: quick ship in one month (24" width, one signature color) · Custom-built in three months

From $649.00

Base model widths (with optional 4" base): up to 24" — $649. After 24" width base price $699; after 30" width base price $749.

Depth: 19" (standard) or 24"

Width: 18", 20", 22", 24", 26", 28", 30", 32"

Color: Designer White, White Sand, Fashion Grey, North Sea, Graphite, Black, Hollyberry, Lapis Blue; woodgrains: Fusion Maple, Pasadena Oak, Walnut Heights, Hampton Walnut

Accessories

Add-ons available — select on full product page to update price

  • Vented front (+$40)
  • Lock box (+$80)
  • Bottom cushion (+$75)
  • Top & bottom cushions (+$150)
  • Name plate (+$10)
  • Skate hooks (+$25)
  • Custom logo (+$75) · custom orders only
  • 4 hooks (+$12)

Volume Discounts

QuantityPrice
50 + lockers3–5% discount – Contact us for pricing

Model X Wood Locker – Features & Options

Specifications

Standard dimensions24" W × 76" H × 19" D
BaseOptional 4" high base
Frame3/4"
Backing3/4"
WeightApprox. 175 lbs
ConstructionMPW-6C plywood core, premium melamine surface
EdgebandingPVC edgebanding
Width range18" – 32"
Depth options19" or 24"
Quick ship2–4 weeks (24" width, Black, Light Gray, Dark Gray, Maple)
Custom build8–12 weeks — any size, wood, or materials
Warranty5 year warranty

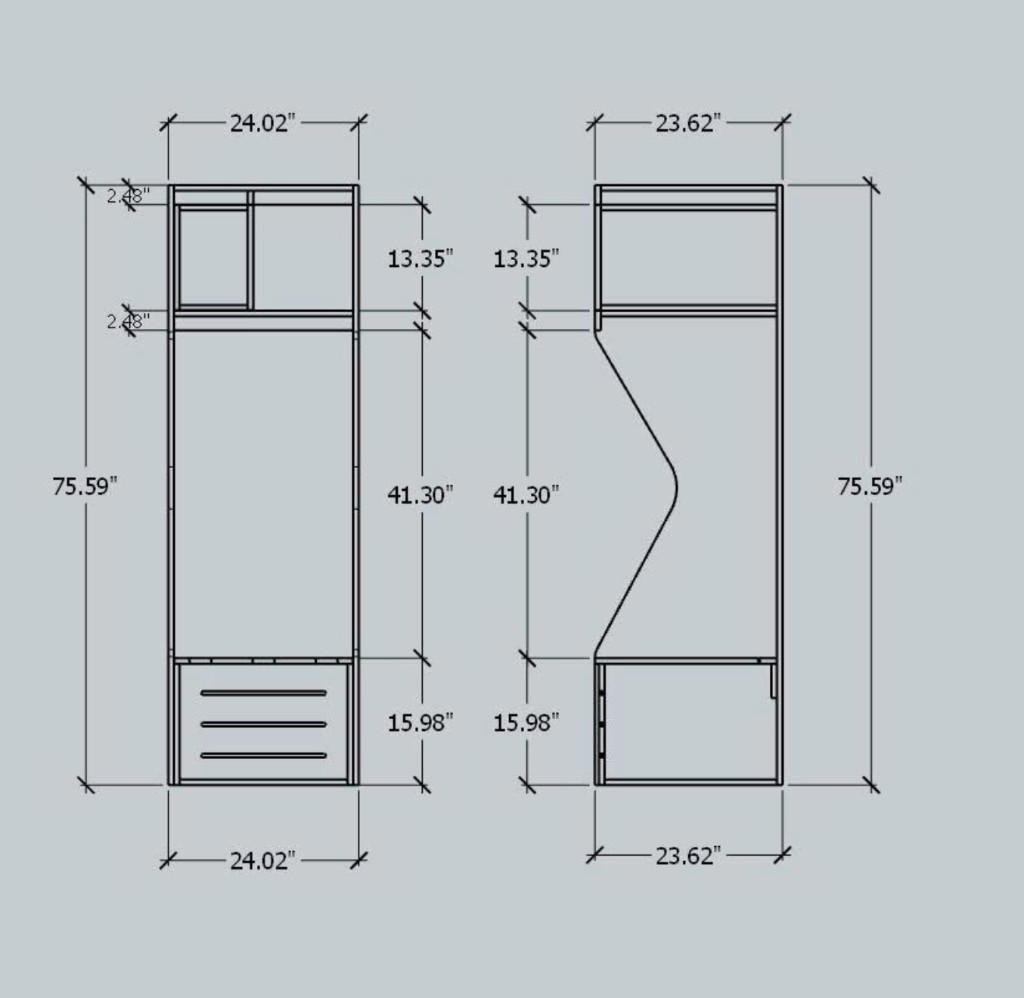

Model X locker dimensions – front and side views

Model X Locker dimensions (front and side)

Features

  • MPW-6C plywood core with premium melamine surface for a furniture-grade look
  • High scratch resistance and impact durability; moisture-resistant, dimensionally stable
  • Engineered for high-traffic athletic locker rooms
  • 14" high foot locker provides comfortable seating and secure equipment storage
  • Available in 18" to 32" widths; standard configuration 24" W x 76" H x 19" D with optional 4" base
  • 5 year warranty

Options

  • Vented front panel for increased airflow
  • Secure lock box integrated into the upper compartment
  • Bottom cushion or both cushions for added seating comfort
  • Skate hooks for hockey or figure skating storage
  • Custom logo option for teams or programs (custom orders only)
  • Name plate and additional gear hooks
